Description

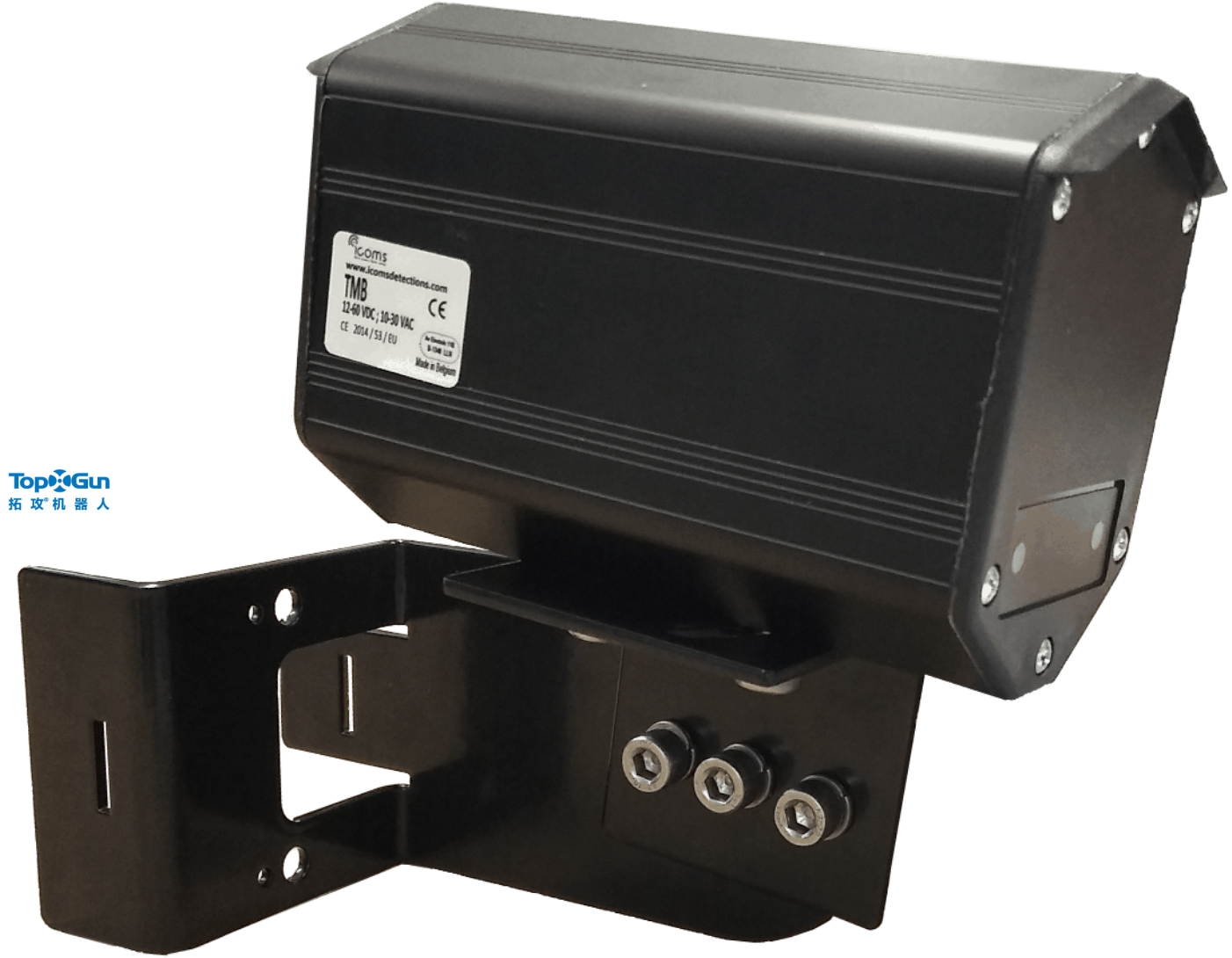

The TMB-134 detects vehicles approaching the stop line on multi-lane intersections. The user can define up to 9 detection areas, configurable in position, size, and function. Each area activates a relay, triggered by movement. The stop-line detection areas can also be configured as presence detection zones: the relays are activated until the object leaves the zone.
- Detection of moving and stationary vehicles
- Range: up to 70 m from installation point
- Detection of vehicles and bicycles
- Configuration with dedicated software
- Comfort of installation and use:
- Above-ground installation
- Works in all weather conditions
- Maintenance-free
- Trustworthy
-
Technical features
Recommended installation configuration Minimum 14 m from the stop line, at the opposite side of the intersection Detection direction Incoming Detection distance Up to 70 m from the installation point Detectable speeds Up to 99 km/h Size of unit LV: L 68 x W 99 x D 151 mm
MV & HV: L 68 x W 99 x D 234 mmWeight (excluding cable and mounting bracket) LV: 0.45 kg; MV: 0.60 kg; HV: 0.63 kg Degree of protection IP65 Mount specific system provided, adapted M8 Operating temperature range from -40 °C to +60 °C Power supply LV: 10-60 V DC / 8-30 V AC, 50-60 Hz
MV: 21-75 V DC / 15-53 V AC, 50-60 Hz
HV: 100-240 V AC, 50-60 HzPower consumption less than 6 W Frequency W-Band: 76-77 GHz E.I.R.P. < 20 dBm User output RS-485 USB for configuration via relay board
